| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | Automatic Sugar Cone Production Line | Voltage: | 380V/220V |
|---|---|---|---|
| Power(W): | 2.2Kw | Gas Consumption: | 12-15kg/h |
| Baking Plates: | 13520*1900*1730mm | Weight: | 7200kg |
| Raw Material: | Wheat Flour | Production Capacity: | 8000pcs/h |
| High Light: | Industrial Sugar Cone Production Line,Ice Cream Sugar Cone Production Line,8000pcs/H Sugar Cone Production Line |
||

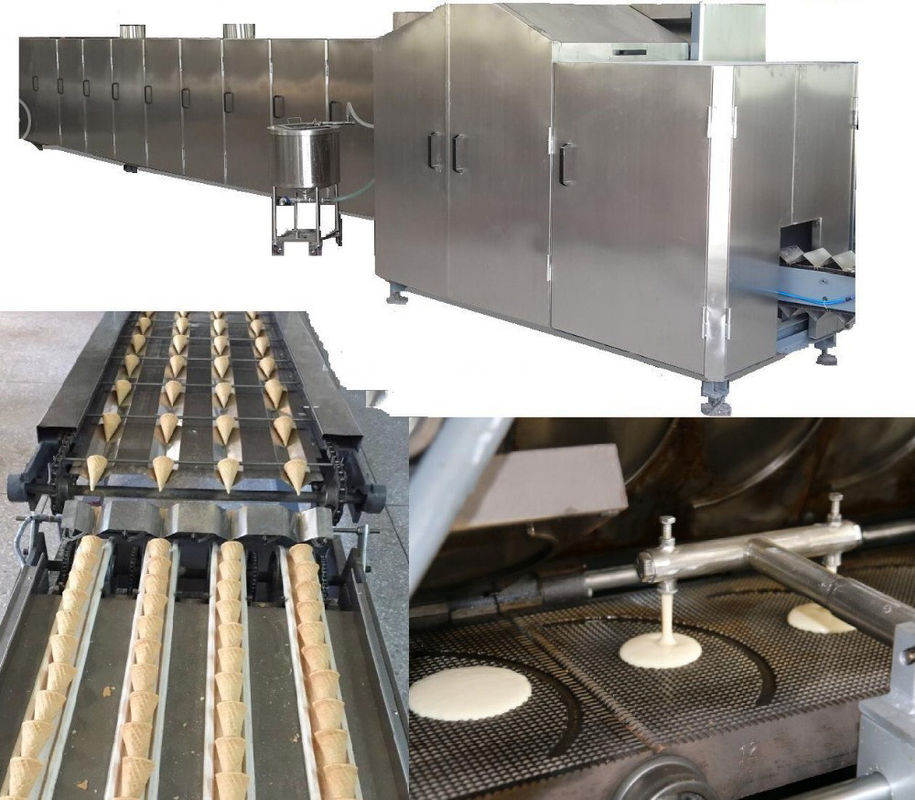

8000pcs/H Industrial Ice Cream Sugar Cone Production Line
Product Description
The machine is fully automatic to make ice cream sugar cone with high quality.The machine can make sugar rolled cone,egg roll,round thin biscuit,wafer biscuit and bowl-shaped cup.We can design the different baking machines to make different types of sugar rolled cones as required by clients.
The machine is driven by the 3 phase power and baking oven is heating with gas(natural gas or liquid gas).The producing ability is very high and it is all automatic from spraying the batter,baking,forming,falling off from molds,conveying products,stacking and counting.
Technical Parameters
|
Drive motor |
Power |
2.2Kw |
|
Voltage |
380 or 220V |
|
|
Main performance parameters |
Production capacity |
8000pcs/h |
|
Gas consumption |
12-15kg/h |
|
|
Air blower |
2.2kw |
|
|
specifications |
Number of baking plates |
75pcs |
|
Measurement |
13520*1900*1730mm |
|
|
Weight |
7200kg |
|
|
Dimension(L*W*H) |
13520*1900*1730mm |
|
|
Power Source |
Gas |
|
|
Usage |
ice cream |
|
|
Type |
Wafer Baking Oven |
