| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | Stainless Steel Rolled Sugar Cone Machine | Material: | Stainless Steel |
|---|---|---|---|
| Dimension(L*W*H): | 5700*1800*1750 Mm | Voltage: | 220V/380V |
| Raw Material: | Flour, Wheat Flour | Capacity: | 3000-6000 Pcs/h |
| Power(W): | 1.5 Kw | Automatic: | Full Automatic |
| Application Fields: | Snack Food Factory | ||
| High Light: | Rolled Sugar Cone Making Machine,Automatic Rolled Sugar Cone Machine,6000 Pcs/H Waffle Cone Production Line |
||

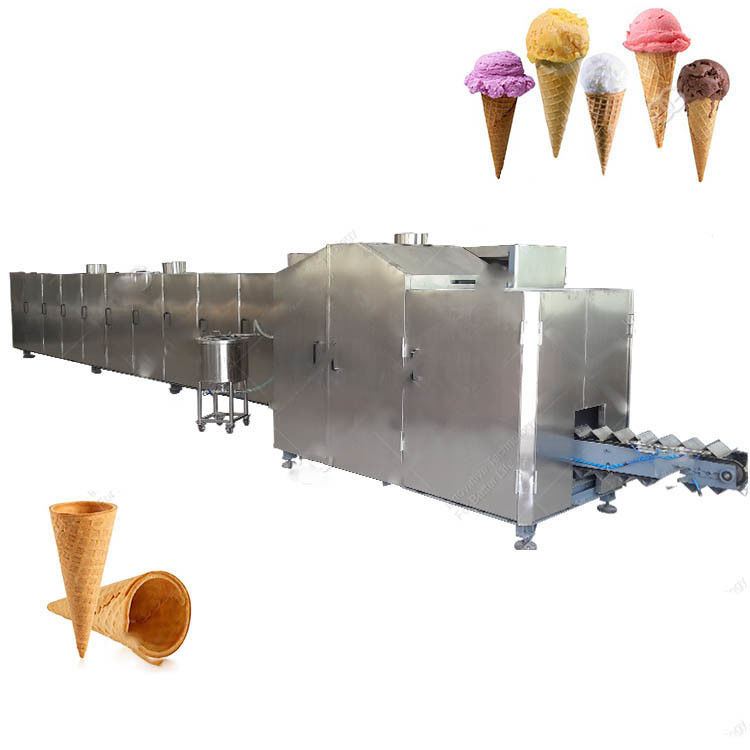

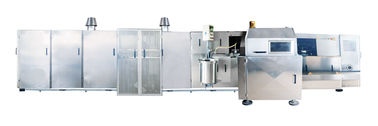

Industrial 6000 Pcs/H Automatic Rolled Sugar Cone Machine
Product Description
The full automatic Rolled Sugar Cone Machine is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.
The fully automatic rolled sugar cone machine is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.
The Rolled Sugar Cone Machine manufacturers is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
| Model | LG-37 | LG-40 | LG-45 | LG-50 |
| Drive motor | 380V 1.5KW | 380V 1.5KW | 380V 1.5KW | 380V 1.5KW |
| Gas consumption | 4-5 M3/h | 5-6 M3/h | 6-7 M3/h | 7-8 M3/h |
| Producing capacity | 3000-4000 pcs/h | 4000-5000 pcs/h | 4500-5500 pcs/h | 5000-6000 pcs/h |
| Machine’s size | 5700*1800*1750 mm | 7200*1800*1750mm | 8200*1850*1800mm | 9000*1900*1850 mm |
| Total weight | 4000kg | 4300kg | 4800kg | 5200kg |
