| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO |
| Minimum Order Quantity: | 1PS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | RAW PACK |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Sufficient Supply |
| Name: | 6000kg Ice Cream Cone Production Line | Material: | Stainless Steel |
|---|---|---|---|
| Total Power: | 4.37kw | Feature: | Energy Saving |
| LPG Consumption: | 10-12kg/h | Function: | Multifunctional |
| Raw Material: | Wheat, Wheat Flour | Net Weight: | 6000kg |
| Product Size:: | Length Below 165mm | ||
| High Light: | 6000 pcs/h Ice Cream Cone Production Line,Stainless Steel Ice Cream Cone Production Line,4.37kw Ice Cream Cone Production Line |
||

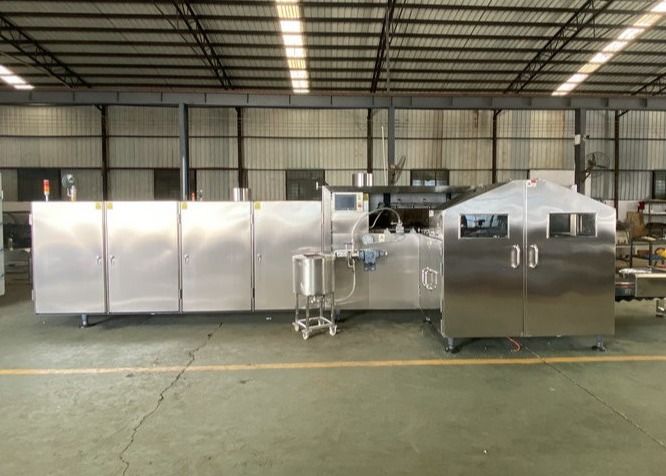

Commercial Automatic Ice Cream Cone Production Line
Feature of Ice Cream Cone Production Line:
1. The commercial Ice Cream Cone Production Line is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.
2. The ice cream cone machines in china is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.
Introduction of Ice Cream Cone Production Line :
The Ice Cream Cone Production Line is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The Automatic Ice Cream Cone Machine producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
Parameter of ice cream cone production line:
|
Model |
GG37*2-16A |
GG45*2-16A |
GG53*2-16A |
|
Drive motor |
380V 1.5KW |
380V 1.5KW |
380V 2.2KW |
|
Rolling system motor |
380V 0.37KW |
380V 0.37KW |
380V 0.37KW |
|
Air blower |
380V 1.1KW |
380V 1.1KW |
380V 1.6KW |
|
Gas consumption(kg/h) |
5-7 |
6-7 |
8-12 |
|
Producing capacity(pcs/h) |
3500-4000 |
4500-5000 |
5500-6000 |
|
Food-grade conveyor |
5000*460*500 |
5000*460*500 |
5000*460*500 |
|
Automatic counter |
3000*460*400 |
3000*460*400 |
3000*460*400 |
|
Mixer |
190L |
190L |
190L |
|
Machine measurement (m) |
7.05*1.90*1.73 |
8.52*1.90*1.73 |
9.80*1.90*1.73 |
|
Total weight |
4200kgs |
4800kgs |
5300kgs
|
